Introduction

The Drive App is a mobile application for maintaining Hours of Service compliance. The App is available for Android and iOS devices. As part of the greater Cloud ELD solution, the Drive App (running on a compatible mobile device), is used together with a Telematics Device — a type of Electronic Logging Device (ELD) — and the Fleet Management Application, to provide end-to-end compliance with federal regulations for motor carriers.

The Drive App has four main features:

  1. Hours of Service (HOS)
  2. Asset Inspection

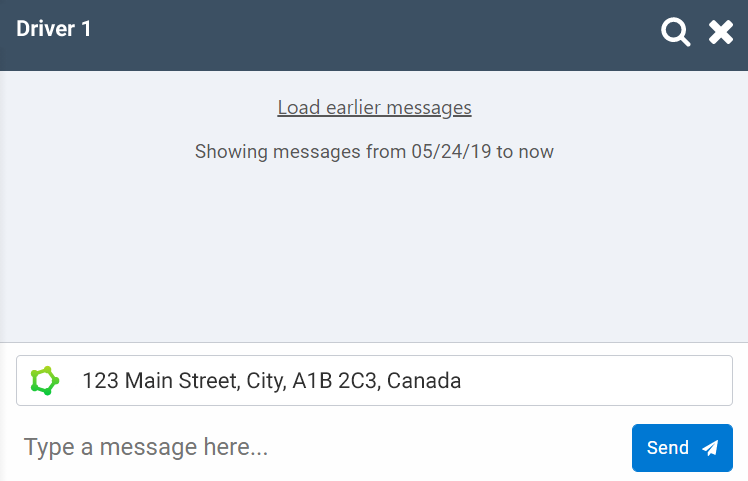

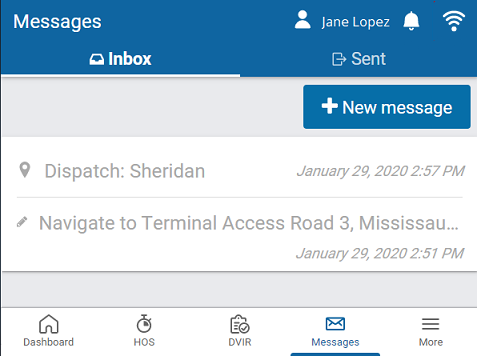

  3. Messaging
  4. Software Add-Ins

The Drive App is available with the GO Plan.

The Drive App also has self-help buttons on each page that allows users to watch support videos for the Drive App, search the Knowledge Base, and view guided workflows while remaining in the app.

NOTE: The self-help buttons are only available on the web version of the Drive App, and Drive App version 6.0 or newer.

Hours of Service Compliance

The Drive App is a certified tool for meeting the Electronic Logging Device (ELD) requirements in North America. As a motor carrier, before using the Drive App, you must:

  1. Know your obligation as a motor carrier — FMCSA § 395.20 of 49 CFR Part 395 and SOR/2005-313
  2. Make sure every driver has a copy of the Driver’s Guide to the Drive App, the Driver’s Guide to Data Transfer at Roadside Checks, and the Driver’s Guide to Data Diagnostics & Malfunction Events;
  3. Make sure every new driver has reviewed the Driver's Guide to Hours of Service (HOS) and Driver’s Guide to Asset Inspection.

! IMPORTANT: The Driver’s Guide to the Drive App, the Driver’s Guide to Data Transfer at Roadside Checks, and the Driver’s Guide to Data Diagnostics & Malfunction Events must be kept in the CMV at all times. For drivers in the USA, these documents must be made available during a roadside check in accordance with FMCSA 49 CFR §395.22 (h). In addition, drivers must have a supply of blank Records of Duty Status (RODS) paper logs sufficient to record the driver’s duty status and other related information for the duration of the current trip. Maintain a second backup copy of the electronic hours-of-service files, by month, at a different physical location from where the original data is stored — FMCSA 49 CFR § 395.22(i).

The Drive App:

  1. Supports three co-drivers logged in to the same device.
  2. Supports all time zones.

For a full list of rulesets and exemptions, please refer to the Hours of Service Ruleset Matrix.

NOTE: All manually created Records of Duty Status (RODS) fields can be edited in the Drive App. Once a new RODS is created, a toast message displays with a Change time or annotate link. Drivers can use this link to edit. Edited RODS will be permanently identified as having been modified.

Company Setup

For compliance with Hours of Service regulations, you must add your company information to the Fleet Management Application. In the Fleet Management Application, go to System > Settings. Fill in the Company name and Company address fields, then set the Maximum personal conveyance distance.

The Personal Conveyance distance determines the maximum distance that a driver can drive under the Personal Conveyance exemption on a single day. Exceeding this distance will disable the exemption and place the driver in the Driving duty status. Click Save to finalize your changes.

To meet the requirements for Canadian HOS rulesets, users can also configure daily Personal Conveyance limit(s) on the Options page under the HOS Settings tab — when the Personal conveyance allowed: option is toggled On. After the daily limit is exceeded, the PC button is grayed out until the next day, and the driver receives a notification. If the driver continues to drive after receiving the notification, the status changes to Drive.

NOTE: Although the user can set the Personal Conveyance limit(s) in both the System Settings and User Options settings, the daily PC limit(s) set in the User Options settings takes precedence.

Vehicle Setup

document Image

You must install a Telematics Device in the vehicle to be used together with the Drive App. Click here for installation instructions.

Once the device is installed, log in to the Fleet Management Application, and select Assets from the main menu.

Next, click the +Asset dropdown and select Add single asset. Fill in the Asset name, device Serial number, Asset type group, and identify any Groups it belongs to.

Add the VIN, then click Save new asset to add the asset.

Once the device has been added, the Asset Edit page automatically displays. From the Asset Edit page, complete the following information:

  1. For State/province, enter license plate jurisdiction for the vehicle.
  2. ✱ NOTE: This can be an abbreviation of the state/province, and is used for asset inspections.

  3. For Hours of service (HOS), set the Hours of Service option to On. This enables the creation of HOS logs for Hours of Service compliance. If set to Automatic, this feature auto-activates when the system determines the vehicle is using HOS features. Devices flagged as third-party using the customDevice type, are restricted from creating automatic HOS logs. Vehicles with Hours of service (HOS) set to Off do not create HOS logs, and are not compliant with ELD regulations.
  4. document Image
  5. For vehicles that are not equipped with a sleeper berth, set Sleeper Berth to Off.

When the vehicle is communicating with the Fleet Management Application, verify that the following information is correct:

  1. Vehicle identification number (VIN)
  2. Odometer value
  3. Current engine hours

Trailer Setup

From the main menu, click Assets, then select the +Asset button at the top of the page, then select Add single asset. Enter the desired name for the trailer, your device serial number, and VIN. Next, select Trailer under the Asset type group dropdown and choose the Groups for this trailer. Once you are done, click the Save New Asset button.

The trailer will be visible to members of the selected groups and their parent groups. If the driver does not belong to the same group as the trailer or a parent group, the driver will not be able to select the trailer from within the Drive App.

Driver Setup

Once the vehicle has been properly configured, you can create and configure a user account for every driver using the Drive App. Before drivers can use the Drive App to manage their Hours of Service (HOS) and Asset Inspection, they must have a username and password to log in to the Drive App, and their accounts must be configured to meet compliance regulations.

From the main menu, navigate to People > Users & Drivers to view all user accounts. If a driver does not already have an account, click the +User button to create a new user. Otherwise, select the driver’s account from the list. In both cases, the User Edit page opens.

To create the new user’s account:

  1. Verify the following information is included under the User tab:
    1. User email
    2. First and last name
    3. Password
    4. Security clearance
  2. Set the user’s Data access to groups appropriate for the user. Users cannot see vehicles or HOS logs outside their data access.
  3. NOTE: The Drive App user clearance is the default clearance for Drive App users.

  4. Set the following under the Driver tab:
    1. Set This user is a driver to Yes.
    2. Set Prevent driver access to shared data to Yes.
    3. Enter the user’s driver’s license number (must be compliant with Hours of Service regulations).
    4. Enter the driver’s license state or province of issue (required for Hours of Service compliance).
    5. NOTE: A valid driver license number and/or license state or province of issue is required to configure a driver under any ruleset.

  5. Set the following under the UI Settings tab:
    1. Distance measurement system
    2. Fuel economy measurement
    3. Time zone
    4. NOTE: The time on the mobile device must be set to change automatically.

  6. Set the following under the HOS Settings tab:
    1. Ruleset: The ruleset followed by the user.
    2. 24-Hour Restart: For drivers who restart their cycle in 24 hours. This applies if vehicle operation involves transportation of oil field or construction equipment.
    3. Oil Well wait Time and 24-Hour Restart: If the vehicle’s operation involves servicing oil wells. Waiting time (WT) at natural gas or oil well sites can be recorded as Off-Duty. The 24-hour restart is also applied when this setting is enabled.
    4. Home terminal: When the driver ordinarily reports for work. This can include a temporary work site designated by the motor carrier.
    5. Home terminal address: The motor carrier’s address where the driver reports for work.
    6. USDOT number: For US fleets, this is the motor carrier’s USDOT number. The USDOT number is required for Hours of Service compliance in the US. Canadian fleets that do not travel to the US, and do not have a DOT number, can leave this field blank. Fleets that travel to both US and Canada enter their USDOT number only.
    7. Yard Move (YM) and Personal Conveyance (PC): Exemptions for ON and OFF-duty driving events. YM is an ON-duty event (for example, moving from loading dock to parking area), and PC is an OFF-duty event (for example, personal driving time to and from the terminal). Neither is considered driving (D) time. The Yard Move exemption is only available for U.S. customers, and can be configured by Administrators (for example, changing the speed threshold, or disabling Yard Move when the vehicle exits a certain zone type).
    8. Maximum personal conveyance distance per day: The maximum distance traveled under the YM exemption before automatically switching to the D status. For Canadian drivers, the maximum distance is 75 km per day.
    9. System Settings: A setting of 0 has no Personal Conveyance limit.
    10. HOS Exempt Allowed: Exemption for vehicle operating under an emergency declaration, or other HOS-exempt conditions defined by the ELD enforcement requirements in North America. The name of the exemption can be customized via System > Settings. To learn more about this exemption, refer to How to use “HOS Exempt” exemption in the Community.
    11. Authority name: The motor carrier that the driver works for.
    12. Authority address: The motor carrier’s main office address.

! IMPORTANT: The HOS settings above are critical to ELD compliance. Please make sure that you fill out this information out correctly.

Exemptions

Exemptions must be enabled by the Administrator before the driver can use the exemption in the Drive App. Enabling an exemption allows the driver to select the exemption under the Options tab in the Drive App when necessary.

! IMPORTANT: The Adverse Driving Conditions (ADC) exemption is enabled by default for all current and newly created drivers. The ADC exemption can be disabled under the HOS settings in the driver’s user profile.

NOTE: A list of all available exemptions can be found here. To avoid confusion, custom HOS exemptions cannot share names with an existing status or exemption.

Clearances

Clearances determine the features that users have access to in the Drive App. Set your drivers’ clearances to match their roles. Security clearances can be created and modified by clicking the Clearances button.

document Image

The Drive App has a built-in clearance for users of the Drive App called the Drive App user. The Drive App user clearance allows the user to access HOS, Asset Inspection, and messaging capabilities.

NOTE: Using HOS features results in additional charges if your device is not on the GO Plan. To avoid additional charges, remove the Administer HOS Logs and View HOS Logs clearances for the driver.

If you wish to limit the features that the driver has access to, select the Drive App user clearance, and click the Add Sub-Clearance button. A sub-clearance is a customized level of access to the Drive App. Sub-clearances can be used to expand or limit user privileges based on organizational need.

By default, the Drive App User clearance provides access to the following features. If you want to remove them, click X. To re-add them, click ✔.

Shipments can be removed from the Drive App by disabling the following two security clearances:

  1. Administer Shipments – Create and edit shipments
  2. View Shipments – View shipments

HOS-Only Access

document Image

Remove these clearances:

  1. Administer Asset Inspection Logs
  2. View Asset Inspection Logs
  3. Send Messages
  4. View Messages

Inspection-Only Access

document Image

Remove these clearances:

    1. Administer HOS Logs
    2. View HOS Logs
    3. Send Messages
    4. View Messages
  • Asset Inspection Sub-Clearances

    Asset Inspection access is further defined by which part of the inspection a user can perform based on their role and area of expertise. Marking Asset Inspections as certified allows users to certify the vehicle as safe, or unsafe to operate. Marking Asset Inspections as repaired allows users to certify that repairs have been made for vehicles with defects, and performing Asset Inspection inspections allows users to inspect a vehicle for defects.

    If you do not want users to perform certain actions within the Asset Inspection, remove the following sub-clearances that apply:

    1. Mark Asset Inspection Logs as Certified.
    2. Mark Asset Inspection Logs as Repaired.
    3. Perform Asset Inspection Inspections.

    Messaging-Only Access

    document Image

    Remove these clearances:

    1. Administer HOS Logs
    2. View HOS Logs
    3. Administer Asset Inspection Logs
    4. View Asset Inspection Logs

    Driver ID-Only Access

    document Image

    Remove these clearances:

    1. Administer Asset Inspection Logs
    2. Administer Trailers
    3. Exceptions Report
    4. Launch Custom Reports or Add-Ins
    5. Mark Asset Inspection logs as repaired
    6. Manage Add-In data
    7. View Add-In data
    8. Send Messages
    9. View Asset Inspection Logs
    10. View HOS Logs
    11. View Messages
    12. View Trailers
    13. View Routes
  • CHANGING DRIVER RULESETS:

    To allow the driver to modify their own ruleset, Change your own user options must be enabled for the Drive App User security clearance.

    IGNORING AUTOMATICALLY GENERATED HOS LOGS DRIVER RULESETS:

    To allow the driver to ignore automatically generated logs that they have claimed, Ignore HOS logs must be added to security clearances. Drivers are required to annotate their logs before ignoring them. Ignoring a log will function the same as it does on the Fleet Management Application: an ignored log will no longer count towards HOS availability, but will still appear during Roadside Checks.

    Driver Assignment

    When a driver logs in to the Drive App and selects a vehicle, they are assigned to the vehicle. Any trips performed by the driver while assigned to a vehicle are associated with their account. Once a driver has logged out of the Drive App, they are no longer assigned to the vehicle.

    If an incorrect driver has been associated with a log or if an unidentified HOS log has been generated, you must edit the log. See the Editing Logs section for more information.

    Hours of Service (HOS) Reports

    The Fleet Management Application includes a collection of reports to help you understand duty status for drivers in your fleet. The basic reports available are the HOS Logs Report; the Violations Report; and the Availability Report.

    You can access these reports from the main menu by navigating to Compliance > HOS > Logs.

    Logs

    The HOS Logs report allows you to view HOS logs for any driver in your fleet. Use the Options button to filter on specific drivers and time periods, or create a Custom time period using the date pickers provided. To view modifications and other logs, select Additional logs. To set a Default view for the report, toggle the Graph or List buttons.

    document Image

    NOTE: The HOS report does not display archived drivers.

    NOTE: The date information on HOS logs is displayed in the driver’s time zone, which may be different from the Administrator’s time zone.

    Hours of Service (HOS) Logs

    By default, the driver’s HOS logs are listed for each vehicle. You can switch views by clicking the buttons.

    document Imagedocument Image

    Exemptions used for a particular log are indicated with an abbreviation matching the exemption.

    document Image

    Hours of Service violations are indicated with a red warning.

    document Image

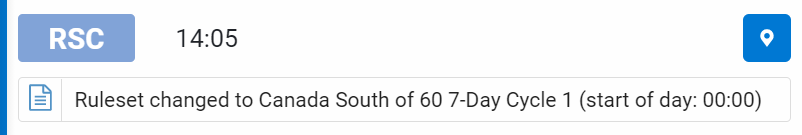

    Ruleset changes are shown alongside other HOS logs.

    document Image

    NOTE: HOS logs can only be moved between co-drivers. When Administrators reassign HOS logs, both users must accept the change to successfully reassign the log.

    HOS Log Abbreviations

    The following abbreviations indicate exemptions:

    1. Engine Power Up: EPU
    2. Engine Power Shutdown: ESD
    3. Ruleset Change: RSC
    4. Malfunction and Diagnostics: COMP
    5. Adverse Weather: AW
    6. Situational Driving Clear: SDC
    7. Exempt HOS: XEMPT
    8. HosEnabled: HE
    9. HosDisabled: HD

    View Graph

    For any vehicle, you can click the View Logs button to view 24-hour status graphs, with the following legend:

    1. Gray: Unverified logs
    2. Green: Verified logs
    3. Yellow: Edited logs
    4. Red: Driving in violation of HOS ruleset
    5. Striped: Personal Conveyance or Yard Move exemption
    6. Blue: Qualifying Break identifies logs that meet the break requirements for Canadian rulesets only.

    document Imagedocument Image

    Each graph displays duration and distance information for Yard Moves and Personal Conveyance. As well, graphs will display summarized information about violations, ruleset changes, authority changes, attached and detached shipments, trailer information, and malfunctions. You can click any bar on the graph to view the relevant log on the logs list.

    NOTE: For drivers using Canadian rulesets, daily and driving violations are combined into a compact view, rather than being separated at the top and bottom of the screen.

    NOTE: For Canadian cross-border drivers that switch to a U.S. ruleset when driving across the border, daily off-duty violations will not be generated. A violation can still be generated if the time remaining in the day is insufficient to meet the daily off-duty requirement while operating under a Canadian ruleset.

    When a log is ignored, the status color changes to gray, and is highlighted by a dashed border.

    document Image

    Unidentified Drivers

    You can use the Unidentified Driving page by navigating to Compliance > HOS > Unidentified Driving to find trips created by unidentified drivers.

    document Image

    The Unidentified Driving page includes the following information:

    1. Vehicle groups and comments to provide context about the vehicle.
    2. Trip distance, duration, and a link to a map with the highlighted route.
    3. If available, the driver of the previous and the next trip made by the vehicle.
    4. The ability to filter trips by annotations, minimum distance, and minimum duration.
    5. The option to identify probable Yard Moves with the Vehicle Movement Within Zones rule.

    document Image

    Editing Logs

    If you are the Administrator or possess the required clearance, you can edit a driver’s HOS logs. Generally, logs do not need to be edited if the Drive App is being used properly. However, there are two instances that can result in inaccurate logs for a driver — unassigned logs and incorrectly claimed logs.

    NOTE: Administrators cannot edit unverified logs in the Fleet Management Application.


    Editing Multiple Logs

    You can use the check mark to select multiple logs for editing at the same time. Drive logs are automatically paired with the proper ON logs in the Fleet Management Application. Drive logs can be moved individually; however, we recommend that you move ON logs with them.


    Filtering Logs for Annotations

    Select the Filter button to filter logs by those that already have annotations and those that need annotations.

    NOTE: Annotations can be added to logs without an assigned driver.

    Unassigned Logs

    Unassigned logs are created when a vehicle is driven without a driver logged in to the App. Trips made without a driver logged in are still recorded, and have a duty status set automatically. These logs will all be assigned to the built-in Unidentified driver user. Drivers who do not claim their trips will not have accurate Records of Duty Status.

    You can assign an unassigned log to a driver as follows:

    1. Navigate to the Compliance > HOS > Unidentified Driving.
    2. In the Options menu, select the Assets and an appropriate date range.
    3. Click Apply changes to run the report.
    4. Examine the trips on the page. The location, distance, and other assigned drivers provide insight into which driver may be responsible for the trip.
    5. To edit a single trip, click Edit.
    6. To edit multiple trips, click Select individual from the dropdown menu, select all trips you want to edit, then click the Edit selected button.

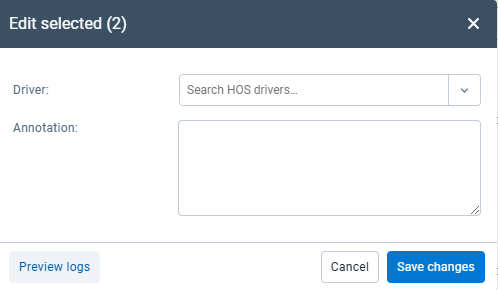

    7. In the Edit selected pop-up, enter the name of the driver in the Driver field to change the assigned driver.
    8. Click Save changes to finalize your changes.

    Unassigned “D” Logs Must Be Assigned With Paired “ON” Logs

    You cannot edit an automatic D log without editing it's paired ON log. To ensure edits are applied to both logs, this operation can only be completed using the Bulk edit feature.

    Filter Unassigned Logs

    When viewing the list of unassigned HOS Logs (assigned to Unidentified Driver), select the Filter dropdown at the top of the page, and choose Without annotations or With annotations, or set a minimum distance and/or duration.

    NOTE: Annotations can be added to logs without an assigned driver.

    Unassigned Logs That Cannot Be Claimed

    The carrier can choose to leave logs unassigned. However, per § 395.32 (c)(1)(i), the carrier must provide an annotation for any log without an assigned driver. For example, a carrier uses a number of third-party mechanics for maintenance and repairs. The mechanics do not have credentials to log in to the Drive App. When moving a vehicle as part of their work, the mechanics will create unassigned logs for the vehicle. Because the mechanics are not part of the organization, they cannot claim the logs. The carrier must annotate these logs with an explanation about the mechanics’ work.

    Incorrectly Claimed Logs

    The Drive App asks drivers to claim unassigned logs every time they log in. Sometimes, drivers can make errors when claiming logs as their own. Incorrectly claimed logs affect the driver’s Record of Duty Status, and it only takes a few errors to put a driver in violation of their Hours of Service. Administrators can send these logs back to the unidentified driver. The logs can then be assigned to the correct driver, or the driver can claim them.

    Ignoring Logs

    To ignore automatic logs, follow the steps below:

    1. Navigate to the HOS Logs report (Compliance > HOS > Logs).
    2. In the Options menu, select the driver, and click Apply changes.
    3. Locate the day that you want to edit on the graph, and click View Logs.
    4. Find the log or logs you wish to ignore.
    5. To edit a single log, click the log. To edit multiple logs, click Select individual from the dropdown menu at the top-right, then click the Edit selected HOS logs button.
    6. On the HOS Log Edit page, set Ignored: to Yes, add an Annotation or select the Bulk Edit link, to ignore multiple logs.
    7. Click Save to finalize your changes.

    The ignored log, including those that continue from the previous day, fade with a note that it has been ignored. To learn more about ignoring logs, click here.

    document Image

    Driver Edits

    When a log is edited, it is marked with a pencil icon. If you edit a verified log, the log’s verified status disappears, and the driver must verify the log again.

    document Image

    Carrier Edits

    When a log is edited by a carrier, it displays as a carrier edit in the Drive App, and the Fleet Management Application. All modifications are displayed below the log.

    document Image

    Carrier edits do not affect the driver’s availability until the driver accepts or rejects the edit. If you edit a verified log, the verified status disappears, and the driver will have to accept the edit and verify the log again. If the edit is rejected, the logs and the driver’s availability do not change.

    Carrier edits display in yellow on the graph.

    document Image

    document Image

    Modification History

    When a log is edited, modifications can be viewed by selecting the log and scrolling to the bottom of the page. The Modifications list displays any edits made to the log.


    NOTE: Automatically generated logs cannot be edited. Only manually created logs can be edited in the application. Automatically created logs cannot be modified or changed to another status. If you attempt to change the status of an automatic log, you are prompted to create a new log with the desired duty status.

    Trip History

    When viewing a driver’s HOS Logs, click the location pin to view the Trips History on the map.

    Trip Categorization (Feature Preview)

    Trip Categorization allows Drivers to classify their assigned driving trips as either business or personal. You can generate a Trip Categorization report from the Reports dropdown menu on the Trips History page. The Trip Categorization report shows distance and ratios driven under each category for each driver.

    NOTE:

    To use the trip categorization feature, you must have the following security clearances:

    1. For trip categorization only: Trips and activity report and Manage driver activity group.
    2. For annotations on the report: View trip annotations and Administer trip annotations.

    To enable the feature for drivers, enable the security clearances listed above then, follow the steps below:

    1. Navigate to People > Users & Drivers.
    2. Select a user from the list.
    3. On the User Edit page, select the Feature Preview tab.
    4. Toggle Trip categorization to On.
    5. Click the Save button.

    Status Print

    Click the Print button to create a print-ready set of logs grouped by day for a driver.

    document Image

    ! IMPORTANT: All logs must be verified before they are submitted to the enforcement officials.

    To save the compliance print as a PDF, set your browser’s printer destination to Save as PDF.

    ELD Logs Transfer

    ELD Settings Validator

    We recommend that you validate the drivers’ settings to ensure that drivers and their vehicles are set up correctly to transfer logs to the enforcement officials. Visit the Marketplace to enable the ELD Settings Validator Add-In for your fleet.

    In the event of an audit, you can electronically transfer logs from the application to the enforcement officials for any 30-day period within the last six months.

    For Canadian Drivers

    When electronically transferring logs, Canadian drivers are notified when logs are missing the following information, and prompted to Cancel or Proceed:

    1. Vehicle distance
    2. Engine hours
    3. CMV VIN
    4. CMV power unit number

    document Image

    On the Logs screen, select the Transfer button, and select whether the transfer is based on Drivers or Vehicles for the desired time period. Consult the Auditor or Roadside Inspector for the preferred Transfer type, i.e. Email or Web Services.

    To enable the Jurisdiction feature, toggle Transfer type to Email. Press Canada or USA as needed.

    Enter the code provided by the Inspector in the Comment field, and click Send. If the transfer is successful, a broadcast will return indicating a successful transfer.

    NOTE: For Canadian drivers, logs can only be transferred using email. Web service transfers are only available to USA drivers at this time.

    Additionally, an audit log is created when ELD logs are transferred. The audit log includes the transfer type, the date and time of the transfer, and the date range included in the transfer. The Audit Log confirms that the App does a local validation when an ELD file is transferred.

    ! IMPORTANT: If the transfer fails, review the broadcast carefully to determine the cause of the failed transfer. See ELD Settings Validator above to learn how to validate the driver and vehicle settings.

    ELD-Exempt Devices

    In the Fleet Management Application, Administrators can set a vehicle’s status to HOS enabled or HOS disabled to control when HOS logs are created. The HOS enabled option generates automatic logs within the specified date and time — independent of the AutoHOS flag. The HOS disabled option will not generate logs within the specified date and time, even when a reprocess is triggered. Drivers can use this feature to compare the amount of time a vehicle is in use before an automatic HOS log is created; as well as the amount of time a vehicle is in use before an automatic log is created.

    To add HOS enabled or HOS disabled logs, ensure that you have the Administer the device’s advanced settings clearance and follow the steps below:

    1. Navigate to Compliance > HOS > Logs.
    2. On the HOS Logs page, click the +HOS log button.
    3. On the Add HOS Log page, enter the required information.
    4. For Status, select HOS enabled or HOS disabled from the dropdown menu.
    5. Click the Save button to save your changes.

    ! IMPORTANT: When adding HOS enabled or HOS disabled logs, the system displays the following message: “This log type is intended for ELD-exempt devices in which HOS can be disabled. Use at your own risk.”

    Violations

    The Violations Report provides a list of all HOS violations that have occurred in your fleet within a selected time period. The report includes the type of violation, when it began, when it ended (if available), and the total time spent driving in violation. You can also select Yes for the Show only drivers in violation display option from the Availability screen to view HOS violations.

    document Image

    Availability

    The Availability Report displays a list of all drivers in your fleet with HOS logs. Non-drivers do not display in the Availability report. The Availability Report page updates every minute and includes:

    1. A recap of driver hours;
    2. Future availability with hours gained at midnight;
    3. Shipments;
    4. Trailer attachment;
    5. Ruleset;
    6. Location; and
    7. Attached vehicle.

    Asset Inspection

    A vehicle inspection must be performed at the end of a driver’s shift. If the driver operates more than one vehicle during the day, a report must be prepared for each vehicle.

    Maintenance staff must review the Asset Inspection, take corrective action on identified issues, and update the inspection report in the Fleet Management Application, noting that repairs were made, or repairs were not necessary.

    At the beginning of a driver’s shift, the driver must review any open reports and confirm whether the vehicle is safe to operate or not.

    Driver’s also have the option to perform an in-trip inspection to check for any defects incurred on the road, or to ensure the vehicle is in good operating condition.

    ! IMPORTANT: The Drive App helps drivers meet the ELD enforcement requirements in North America.

    The Asset Inspection lists all vehicle inspection reports that have been performed. To access the Asset Inspection in the Fleet Management Application, navigate to Maintenance > Asset Inspection.

    You can search for reports by vehicle, trailer, and date. You can also filter reports based on the defect, repair, and certification status of each report.

    document Image

    Each report displays an icon associated with the vehicle certification status.

    document Image

    Vehicle is safe to operate

    document Image

    Vehicle is unsafe to operate

    document Image

    Vehicle has been repaired

    document Image

    Vehicle needs repairs

    document Image

    Vehicle needs repairs (unregulated defect)

    document Image

    Vehicle includes a photograph of defect or repair

    NOTE: The option to include a photograph of the defect or repair during an Asset Inspection is only available on the GO Plan.

    document Image

    document Image

    You can create, review, and certify Asset Inspections from within the Fleet Management Application.

    Select any Asset Inspection log from the list to display the Edit Inspection page, where you can view additional information about the inspection, including vehicle information, repair information, and certification.

    Asset Inspection Type displays as Pre-trip, In-trip, or Post-trip based on the driver’s selection.

    The Asset Inspection is categorized as pre-trip if the vehicle is driven after the Asset Inspection is completed, or post-trip if the vehicle is driven before the Asset Inspection is completed.

    Drivers have the option of attaching an image for visual representation of a defect or related repair.

    Depending on the status of the Asset Inspection, the Asset Inspection Edit page displays the options necessary for certifying the inspection. If the vehicle has reported defects, it must be inspected or repaired, then certified. After repairing the defects, select Repaired or not a defect under the Repairs section.

    Or, select Repair not necessary for the safe operation of the vehicle if no repair is needed. If this is selected, the defect automatically carries over to the next Asset Inspection to ensure visibility for Administrators. You can also add a remark to provide more details about each defect. Remarks made during previous inspections are displayed at the top of the page, next to Legacy Repair Remark.

    NOTE: In Canada, if a minor defect is not marked as repaired, it is reported on the next Asset Inspection. Once the defect is marked as Repaired or not a defect, all Asset Inspections reporting the defect are marked as Repaired or not a defect.

    document Image

    NOTE: Users without the clearance to repair defects can only mark defects as Repair not necessary for the safe operation of the vehicle. The Repaired or not a defect option is not displayed.

    Click Save to save your changes. If desired, you can also Print the Asset Inspection on the top menu.

    document Image

    If the vehicle has been repaired, certify that it is safe to operate under the Certification section.

    document Image

    NOTE: Certifications only apply to U.S. inspections where a defect has been reported, and is not required for Canadian or Australian rulesets. If the asset is certified as unsafe, you are required to select a new asset.

    Then click Save and certify on the top menu.

    document Image

    As a dispatcher or manager reviewing an inspection report, you can associate a certification or a repair with a particular user.

    After a repair has been made or deemed unnecessary within the Fleet Management Application, the driver sees the updated information on the Drive App.

    document Image

    Adding an Asset Inspection

    NOTE: Although an asset inspection can be added from the Fleet Management Application, it is recommended to add an asset inspection using the Drive App.

    1. In the Fleet Management Application, go to Maintenance > Asset Inspection.
    2. Click +Inspection.
    3. From the Add Inspection page, select the Asset and if the data is available, the Inspection location displays.
    4. Add the height and width of load, if necessary.
    5. Select from the Defect list. Once this is selected, you can add a defect or remark.
    6. Click Save.

    Using Defect Lists

    The defects list is the set of items that a driver can look over when performing an Asset Inspection. The Fleet Management Application pre-configures all assets in your fleet to use a default defects list. This list contains most of the common defects that a vehicle might experience on the road.

    Creating Custom Defect Lists

    If your assets require specialized defects that are not covered by the default defect list, you can create a custom defect list(s) to meet the needs of your fleet, and apply those defect lists to specific groups. You can create as many defect lists as your fleet requires, which your drivers can select by name when performing an Asset Inspection.

    NOTE: If you are applying custom defect lists to groups, be sure that the groups include vehicles.

    1. In the Fleet Management Application, navigate to Maintenance > Asset Inspection.
    2. Click the Defect Lists button.
    3. On the Defect Lists page, click the Add button.
    4. Fill in the Name field, and select the applicable groups to display the defect list for those vehicles.
    5. Select whether the list applies to Devices, Trailers, or All.
    6. In the Parts and defects field, enter the name of a part and click Add part.
    7. Click the + button to add specific defects to each part.
    8. Continue adding parts and defects until you have completed your list, then click Save.

    document Image

    You can categorize defects as Major, Minor, or Unregulated. Categorize most defects as Minor and reserve the Major defect status for defects that can endanger the safety of your drivers. Use the Unregulated defect status for defects that are not associated with federal compliance requirements, and do not pose a safety risk to the driver.

    During asset inspection in the Drive App and Fleet Management Application, you can also mark parts as Required. Required parts must be marked as either safe or faulty by the user, and cannot be ignored. During the asset inspection workflow, the Required parts are displayed together, above the optional parts.

    Major defects are shown with visual emphasis in both the Fleet Management Application and the Drive App.

    document Image

    document Image

    Administrators also have the option to toggle the view of the Other defect option — does not require the NODVIROTHER custom code. The “Other” label includes any miscellaneous issues that may not be listed in the Defect List.

    Asset Inspection Exception Rule

    The Asset Inspection Exception Rule is a custom rule to alert drivers when an Asset Inspection defect has been reported. The rule is only available for vehicles at this time; trailers are not included in the rule. To learn more about setting up exception rules, please refer to the Fleet Management Application Product Guide.

    Messaging

    The Messaging feature allows you to communicate with your drivers through text messages sent between the Fleet Management Application and the Drive App. You can access the Messaging page in the Fleet Management Application by navigating to Messages. In the Drive App, the driver can click the Messages button to use the messaging feature.

    AUDIBLE MESSAGES: The driving lock screen prevents drivers from reading and writing messages if the vehicle is in motion. The Drive App vocalizes the text message using its built-in text-to-speech capability.

    TEXT MESSAGES: The driving lock screen prevents drivers from reading and writing messages while operating the vehicle, but the messages are still audible to the driver.

    The conversation-style message layout provides simple-to-use input controls, such as adding links and canned replies. A message can be sent to a single device or user, or to multiple devices or users.

    NOTE: If you choose to send a message to more than one recipient, their replies will be visible to you only.

    Unread messages are displayed in tab titles for easy detection or as shortcuts under Notifications on the main title bar. Search for messages using date and display filters for accurate results.

    Sending Text Messages

    Messages sent to drivers display as alerts and can be answered using easy, single tap responses.

    document Image

    Messages can be sent to devices for anyone driving the vehicle to see, or directly to users for private two-way communication. The maximum text message length is 5000 characters.

    You can also bind canned responses to a message, which provides reply options to the recipient.

    For messages sent in offline mode, a clock icon is displayed to indicate the message is pending.

    Dispatching to Zones

    Vehicles and drivers can be dispatched to specific zones from the Fleet Management Application. You can dispatch zones to vehicles from the Map by clicking a zone and selecting Dispatch vehicle here.

    document Image

    On the screen that follows, the message field is pre-filled with the address or zone name of the selected location. Select a recipient, and click Send to complete the dispatch.

    document Image

    After you send the dispatch, the message displays in the driver’s inbox in the Drive App. When the driver presses a message, a link displays to open the zone in a navigation app.

    Dispatching to Routes

    Routes are a set of destinations meant to be visited in a defined order. You can dispatch vehicles and drivers to specific routes from the Fleet Management Application.

    document Image

    To send a route, navigate to Productivity > Basic Routing > Routes, select a route from the list. From the Route Edit page, click the Send to vehicle button.

    From the Messages page, select the recipients of the route and click Compose message.

    document Image

    After you send the route, the driver receives a single message with the routes grouped together.

    The message expands when the driver presses it and displays a list of routes. When the driver selects a message from the list, a link displays to open the location in a navigation map.

    Sending Alerts

    Alerts notify drivers about the infractions they make on the road. You can customize alerts to notify drivers in response to many on-road behaviors, including speeding, harsh braking, and working after hours.

    NOTE: See the Fleet Management Application Product Guide for more information on rules and alerts.

    document Image

    You can create alerts for the driver by navigating to Groups & Rules > Rules and clicking the Add button.

    On the screen that follows, enter the text the driver will receive as an alert.

    To learn more about rules and alerts, refer to the Fleet Management Application Product Guide.

    document Image

    Once a driver triggers a rule, the Fleet Management Application will automatically send a message to the driver’s message box in the Drive App.

    AUDIBLE MESSAGES

    If the vehicle is in motion when the driver receives a message, the Drive App will vocalize the text message using its built-in text-to-speech capability.

    WIRELESS CONNECTIVITY ALERTS

    If the vehicle is in an area with no wireless connectivity, the Drive App will display an alert.

    scroll-up
